- Push radar and electronic warfare designs farther with highly realistic signal scenarios
- Leverage up to 256 GSa/s sample rates
- Debug your toughest designs with confidence using superior signal fidelity
- Use high-resolution and wide-bandwidth signals simultaneously
- Stress your device to its limits with clean or distorted signals
- Reduce system footprint with AXIe form factor
- Provides R&D engineers a high-performance signal source for arbitrary signals, enabling development of designs of 160 GBaud and above
- Up to 8 synchronized channels at 256 GSa/s with nominal analong bandwidth exceeding 80 GHz
- Integrated and ready-to-use hardware, allowing you to spend more time running tests
- Built-in frequency and phase response calibration for clean output signals
- Flexible system with upgrade options from 1 channel to 8 synchronized channels
- Operates with well-known software, including MATLAB, Keysight IQTools, and SCPI programming interface based on M8070B software

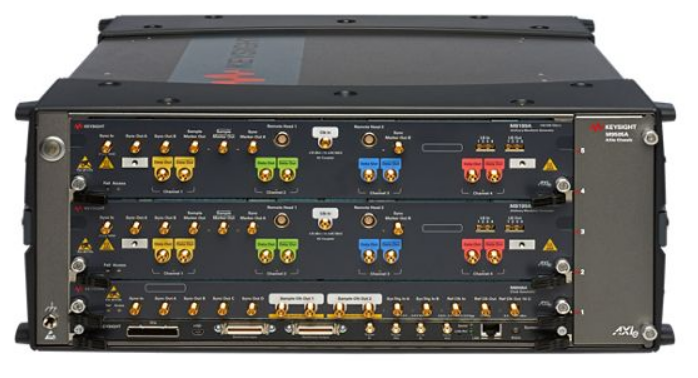

M8100 Series AWG Highlights
Enhance Your Reality
The M8100 Series arbitrary waveform generators (AWGs) offer a level of versatility that enables you to set up complex real-world signals — whether you need precise signals to characterize the performance of a design or need to stress a device to its limits. From low-observable radar to high-density communications, testing is more realistic with our precision arbitrary waveform generators.
Meet the New M8199B 256 GSa/s AWG
The new M8199B arbitrary waveform generator provides the speed, bandwidth, precision, and flexibility to meet the challenges of your next-generation applications.
