现货EA-PSI 10360-120 3U 德国EA电源-雨芯仪器代理

  • 价格:面议
购买咨询:

产品介绍



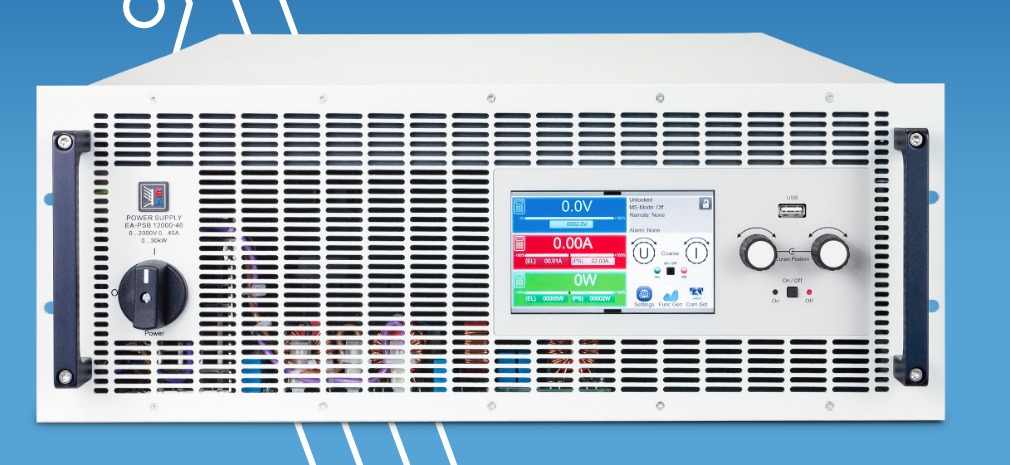

    EA-PSI 10360-120 3U为德国EA最新推出的高精度直流电源,在进口直流电源中被广泛用于汽车测试电源等领域。

    EA-PSI 10360-120 3U产品技术规格书(点击右键另存为)德国EA代理,上海雨芯仪器科技有限公司提供



    Features
    Wide range input, 208 V - 480 V +10 % 3ph AC
    Active Power-Factor-Correction, typical 0.99
    Very high efficiency up to 96 %
    High performance of 15 kW per unit
    Voltage from 0 - 60 V up to 0 - 2000 V
    Currents from 0 - 20 A up to 0 - 510 A
    Flexible power regulated DC output stages
    (autoranging)
    Regulation mode CV, CC, CP, CR with fast crossover
    Digital regulation, high resolution with 16bit ADCs and  DACs, selection of control speed: Normal, Fast, Slow

    Color 5“ TFT display with touch control and intuitive  user interface
    Galvanically isolated Share-Bus for parallel operation  of all power classes in the 10000 series
    Master-Slave bus for parallel operation of up to 64  units of all power classes in the 10000 series
    Integrated function generator with predefined curves

    Predefined automotive test procedures for LV123,  LV124 and LV148
    Command languages and drivers: SCPI and ModBus,  LabVIEW, IVI



    Build-in Interfaces

    USB
    Ethernet
    Analog
    USB Host
    Master-Slave-Bus
    Share-Bus



    Optional Interfaces

    CAN
    CANopen
    RS232
    Profibus
    EtherCAT
    Profinet, with one or two ports
    Modbus, with one or two ports
     Ethernet, with one or two ports



    Software

    EA-Power Control





    Technical Specifications EA-PSI 10360-120 3U
    DC-Output
    Voltage range 0 - 360V
    Ripple rms CV ≤55 mV BW 300 kHz
    Ripple and noise p-p CV ≤320 mV BW 20 MHz
    Current range 0 - 120 A
    Power range *1 0 - 15000 W
    Resistance range 0.1 Ω - 180 Ω
    Output capacity 1179 μF
    Efficiency up to 95.5% *1
    Isolation
    Negative DC-Pol <-> PE
    ±1000 V DC
    Positive DC-Pol <-> PE +1000 V DC
    Article number 06230823



    *1 100% Power and 100% Output voltage

    EA-PSI 10360-120 3U

    General specifications


    AC-Input
    Voltage, Phases  208 V / 380 V / 400 V / 480 V ±10%, 3ph AC (208 V 3ph AC with Derating to 9 kW)
    Frequency 45-66 Hz
    Power factor >0.99
    Leakage current < 5mA
    Overvoltage category 2
    Pollution degree 2
    DC-Output static
    Load regulation CV ≤0.05% FS (0 - 100% load, constant input voltage and constant temperature)
    Line regulation CV ≤0.01% FS (110 V - 240 V AC +10% input voltage, constant load and constant temperature)
    Stability CV ≤0.02% FS (Over 8hrs interval following 30 minutes warm-up, constant input voltage, load and temperature)
    Temperature coefficient CV ≤30ppm/°C (Following 30 minutes warm up)
    Compensation (Remote Sense) ≤5% UNominal
    Load regulation CC ≤0.1% FS (0 - 100% load, constant input voltage and constant temperature)
    Line regulation CC ≤0.01% FS (208 V - 480 V AC +10% input voltage, constant load and constant temperature)
    Stability CC ≤0.02% FS (Over 8hrs interval following 30 minutes warm-up, constant input voltage, load and temperature)
    Temperature coefficient CC ≤50ppm/°C (Following 30 minutes warm up)
    Load regulation CP ≤0.3% FS (0 - 100% load, constant input voltage and constant temperature)
    Load regulation CR ≤0.3% FS + 0.1% FS current (0 - 100% load, constant input voltage and constant temperature)
    Protective functions
    OVP
    Overvoltage protection adjustable, 0 - 110% UNominal
    OCP Overcurrent protection adjustable, 0 - 110% INominal
    OPP Overpower protection adjustable, 0 - 110% PNominal
    OT Overtemperature protection, output shuts down in case of insufficient cooling
    DC-Output dynamic
    Rise time 10 - 90% CV ≤20 ms
    Fall time 90 - 10% CV ≤20 ms
    Rise time 10 - 90% CC ≤10 ms
    Fall time 90 - 10% CC ≤10 ms
    Display accuracy

    Voltage
    ≤0.05% FS
    Current ≤0.1% FS
    Insulation
    AC-Input to DC-Output
    3750 Vrms (1 Minute), creepage >8 mm
    AC-Input to case (PE) 2500 Vrms
    DC-Output to case (PE) Depending on the model, see model table
    DC-Output to Interfaces 1000 V DC (Model up to 360 V output), 1500 V DC (Model from 500 V output)
    Interfaces Digital
    Built-in, galvanically isolated
    USB, Ethernet (100 MBit) for communication
    1x USB Host for data acquisition
    Optional, galvanically isolated CAN, CANopen, RS232, ModBus TCP, Profinet, Profibus, EtherCAT, Ethernet
    Interfaces Analog
    Built-in, galvanically isolated 15-pole D-Sub
    Signal range 0 - 10 V or 0 - 5 V (switchable)
    Inputs U, I, P, R, remote control on/off, DC output on/off, resistance mode on/off
    Outputs Monitor U and I, alarms, reference voltage, status DC, status CV/CC
    Accuracy U / I / P / R 0 - 10 V ≤0.2%, 0 - 5 V ≤0.4%
    Device configuration
    Parallel operation
    Up to 64 units of any power class in series 10000, with Master-Slave-Bus and Share-Bus
    Safety and EMC
    Safety
    EN 61010-1
    IEC 61010-1
    UL 61010-1
    CSA C22.2 No 61010-1
    BS EN 61010-1
    EMC EN 55011, class B
    CISPR 11, class B
    FCC 47 CFR Part 15B, Unintentional Radiator, class B
    EN 61326-1 include tests according to:
    - EN 61000-4-2
    - EN 61000-4-3
    - EN 61000-4-4
    - EN 61000-4-5
    - EN 61000-4-6
    Safety protection class 1
    Ingress Protection IP20
    Environmental conditions
    Operating temperature
    0 - 50 °C
    Storage temperature -20 - 70 °C
    Humidity ≤80% RH, non-condensing
    Altitude ≤2000 m (≤6600 ft)
    Mechanical construction
    Cooling
    Forced air flow from front to rear, temperature controlled fans
    Dimensions (B x H x T) 19“ x 3U x 668 mm (Enclosure only, not over all)
    Weight 32.8 kg (72 lb)
