EA Programmable DC Power Supplies

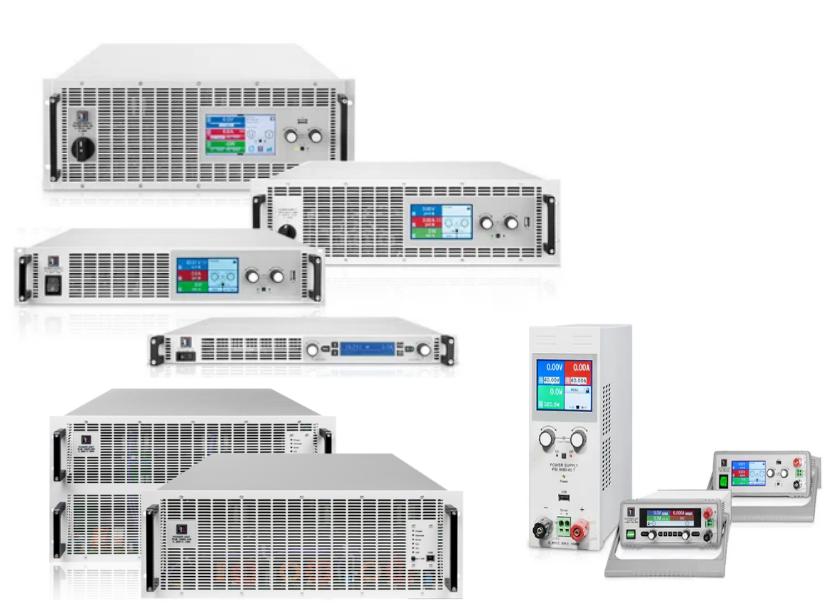

Benchtop and rackmount autoranging power supply




The programmable DC power supply family from EA range in power from 80W benchtop devices up to 30kW in a single chassis. High power density units can be easily paralleled up to 1,92MW in output, with up to 2000 VDC. All EA Elektro-Automatik DC programmable power supplies feature true Autoranging which automatically offers increased current at lower voltages, enabling a single supply to meet wider test requirements.

The PS and PSI series feature 5 “TFT touch panel display for intuitive control, setup and programming. The intelligent interface allows you to program and test quickly without the need for extensive manual review. This user-friendly touchscreen is a feature not found on competing benchtop supplies.

Most of the PS / I family of programmable dc power supplies come standard with an arbitrary waveform function generator, swappable digital interface control and built-in test routines for battery test, photovoltaic simulation and MPP tracking, to name a few.

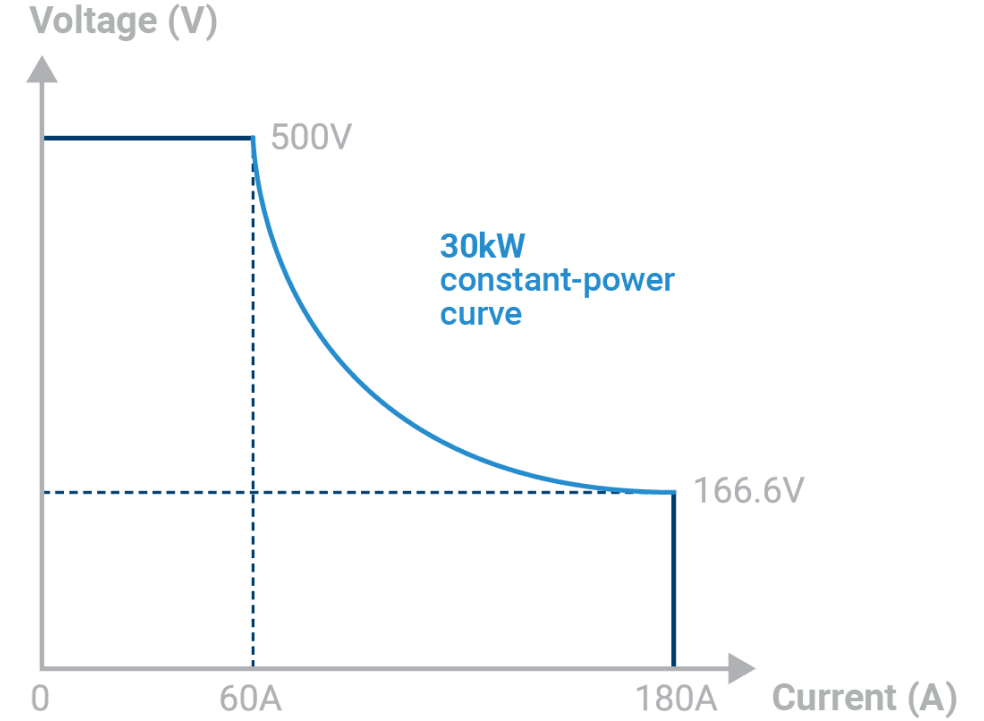

True Autoranging – Advantages for Test
All EA power supplies provide true autoranging giving full power across a larger operating range to test more devices with just one supply. Autoranging enables the power supply to automatically adapt to higher output voltages when there is a smaller current or handle higher currents when there is a lower voltage. EA’s true autoranging can deliver full power down to 33% of rated output voltage.

Save budget and space
No oversizing supply
One supply tests more
Versatile for future tests









Waveform Function Generator
A common requirement for dc power supplies is to deliver the output voltage or current with a waveform other than a straight-line dc signal. EA’s built-in function generator includes options for sine, triangle, square, and trapezoidal waveforms, as well as custom arbitrary waveforms. In addition, the solution offers configuration tools for ramps, UI and IU tables and simulations for fuel cells and photovoltaics.




EA-PS 2000B  Series

PS 2042-06B    0...42 V   0...6 A  0...100 W

PS 2042-10B    0...42 V   0...10 A  0...160 W

PS 2042-20B    0...42 V   0...20 A  0...320 W

PS 2084-03B    0...84 V   0...3 A  0...100 W

PS 2084-05B    0...84 V   0...5 A  0...160 W

PS 2084-10B    0...84 V   0...10 A  0...320 W

EA-PS 2000 B  Triple Series

PS 2342-06 B    Output 1+2: 0...42 V   0...6 A  0...100 W  Output 3: 3...6 A

PS 2342-10 B    Output 1+2: 0...42 V   0...10 A  0...160 W  Output 3: 3...6 A

PS 2384-03 B    Output 1+2: 0...84 V   0...3 A  0...100 W  Output 3: 3...6 A

PS 2384-05 B    Output 1+2: 0...84 V   0...5 A  0...160 W  Output 3: 3...6 A

EA-PS 3000 C  Series

PS 3040-10 C    0...40 V   0...10 A  0...160 W

PS 3080-05 C    0...80 V   0...05 A  0...160 W


PS 3200-02 C    0...200 V   0...2 A  0...160 W

PS 3040-20 C    0...40 V   0...20 A  0...320 W

PS 3080-10 C    0...80 V   0...10 A  0...320 W

PS 3200-04 C    0...200 V   0...4 A  0...320 W

PS 3040-40 C    0...40 V   0...40 A  0...640 W

PS 3080-20 C    0...80 V   0...20 A  0...640 W

PS 3200-10 C    0...200 V   0...10 A  0...640 W

EA-PSI 9000 DT  Series

PSI 9040-20 DT    0...40 V   0...20 A  0...320 W

PSI 9080-10 DT    0...80 V   0...10 A  0...320 W

PSI 9200-04 DT    0...200 V   0...4 A  0...320 W

PSI 9040-40 DT    0...40 V   0...40 A  0...640 W

PSI 9080-20 DT    0...80 V   0...20 A  0...640 W

PSI 9200-10 DT    0...200 V   0...10 A  0...640 W

PSI 9040-40 DT    0...40 V   0...40 A  0...1000 W

PSI 9080-40 DT    0...80 V   0...40 A  0...1000 W

PSI 9200-15 DT    0...200 V   0...15 A  0...1000 W

PSI 9360-10 DT    0...360 V   0...10 A  0...1000 W

PSI 9500-06 DT    0...500 V   0...6 A  0...1000 W

PSI 9750-04 DT    0...750 V   0...4 A  0...1000 W

PSI 9040-60 DT    0...40 V   0...60 A  0...1500 W

PSI 9080-60 DT    0...80 V   0...60 A  0...1500 W

PSI 9200-25 DT    0...200 V   0...25 A  0...1500 W

PSI 9360-150 DT    0...360 V   0...15 A  0...1500 W

PSI 9500-10 DT    0...500 V   0...10 A  0...1500 W

PSI 9750-06 DT    0...750 V   0...6 A  0...1500 W

EA-PSI 9000 T  Series

PSI 9040-20 T    0...40 V   0...20 A  0...320 W

PSI 9080-10 T    0...80 V   0...10 A  0...320 W

PSI 9200-04 T    0...200 V   0...4 A  0...320 W

PSI 9040-40 T    0...40 V   0...40 A  0...640 W

PSI 9080-20 T    0...80 V   0...20 A  0...640 W

PSI 9200-10 T    0...200 V   0...10 A  0...640 W

PSI 9040-40 T    0...40 V   0...40 A  0...1000 W

PSI 9080-40 T    0...80 V   0...40 A  0...1000 W

PSI 9200-15 T    0...200 V   0...15 A  0...1000 W

PSI 9500-06 T    0...500 V   0...6 A  0...1000 W

PSI 9040-60 T    0...40 V   0...60 A  0...1500 W

PSI 9080-60 T    0...80 V   0...60 A  0...1500 W

PSI 9200-25 T    0...200 V   0...25 A  0...1500 W

PSI 9500-10 T    0...500 V   0...10 A  0...1500 W

EA-PS 9000 T  Series

PS 9040-20 T    0...40 V   0...20 A  0...320 W

PS 9080-10 T    0...80 V   0...10 A  0...320 W

PS 9200-04 T    0...200 V   0...4 A  0...320 W

PS 9040-40 T    0...40 V   0...40 A  0...640 W

PS 9080-20 T    0...80 V   0...20 A  0...640 W

PS 9200-10 T    0...200 V   0...10 A  0...640 W

PS 9040-40 T    0...40 V   0...40 A  0...1000 W

PS 9080-40 T    0...80 V   0...40 A  0...1000 W

PS 9200-15 T    0...200 V   0...15 A  0...1000 W

PS 9500-06 T    0...500 V   0...6 A  0...1000 W

PS 9040-60 T    0...40 V   0...60 A  0...1500 W

PS 9080-60 T    0...80 V   0...60 A  0...1500 W

PS 9200-25 T    0...200 V   0...25 A  0...1500 W

PS 9500-10 T    0...500 V   0...10 A  0...1500 W

EA-PS 9000 1U  Series

PS 9080-50 1U   0...80 V   0...50 A  0...1500 W

PS 9200-25 1U   0...200 V   0...25 A  0...1500 W

PS 9360-15 1U   0...360 V   0...15 A  0...1500 W


PS 9500-10 1U   0...500 V   0...10 A  0...1500 W

PS 9750-06 1U   0...750 V   0...6 A  0...1500 W

PS 9080-100 1U   0...80 V   0...100 A  0...3000 W

PS 9200-50 1U    0...200 V   0...50 A  0...3000 W

PS 9360-30 1U    0...360 V   0...30 A  0...3000 W

PS 9500-20 1U    0...500 V   0...20 A  0...3000 W

PS 9750-12 1U   0...750 V   0...12 A  0...3000 W

EA-PS 10000 2U Series

PS 10060-60 2U   0...60 V   0...60 A  0...1500 W

PS 10080-60 2U   0...80 V   0...60 A  0...1500 W

PS 10200-25 2U   0...200 V   0...25 A  0...1500 W

PS 10360-15 2U   0...360 V   0...15 A  0...1500 W

PS 10500-10 2U   0...500 V   0...10 A  0...1500 W

PS 10750-06 2U   0...750 V   0...6 A  0...1500 W

PS 10060-120 2U   0...60 V   0...120 A  0...3000 W

PS 10080-120 2U   0...80 V   0...120 A  0...3000 W

PS 10200-50 2U   0...200 V   0...50 A  0...3000 W

PS 10360-30 2U   0...360 V   0...30 A  0...3000 W

PS 10500-20 2U   0...500 V   0...20 A  0...3000 W

PS 10750-12 2U   0...750 V   0...12 A  0...3000 W

PS 11000-10 2U   0...1000 V   0...10 A  0...3000 W

PS 11500-06 2U   0...1500 V   0...6 A  0...3000 W

EA-PSI 10000 2U Series

PSI 10060-60 2U   0...60 V   0...60 A  0...1500 W

PSI 10080-60 2U   0...80 V   0...60 A  0...1500 W

PSI 10200-25 2U   0...200 V   0...25 A  0...1500 W

PSI 10360-15 2U   0...360 V   0...15 A  0...1500 W

PSI 10500-10 2U   0...500 V   0...10 A  0...1500 W

PSI 10750-06 2U   0...750 V   0...6 A  0...1500 W

PSI 10060-120 2U   0...60 V   0...120 A  0...3000 W

PSI 10080-120 2U   0...80 V   0...120 A  0...3000 W

PSI 10200-50 2U   0...200 V   0...50 A  0...3000 W

PSI 10360-30 2U   0...360 V   0...30 A  0...3000 W

PSI 10500-20 2U   0...500 V   0...20 A  0...3000 W

PSI 10750-12 2U   0...750 V   0...12 A  0...3000 W

PSI 11000-10 2U   0...1000 V   0...10 A  0...3000 W

PSI 11500-06 2U   0...1500 V   0...6 A  0...3000 W

EA-PS 10000 3U Series

PS 10060-170 3U   0...60 V   0...170 A  0...5000 W

PS 10080-170 3U   0...80 V   0...170 A  0...5000 W

PS 10200-70 3U   0...200 V   0...70 A  0...5000 W

PS 10360-40 3U   0...360 V   0...40 A  0...5000 W

PS 10500-30 3U   0...500 V   0...30 A  0...5000 W

PS 10750-20 3U   0...750 V   0...20 A  0...5000 W

PS 10060-340 3U   0...60 V   0...340 A  0...10000 W

PS 10080-340 3U   0...80 V   0...340 A  0...10000 W

PS 10200-140 3U   0...200 V   0...140 A  0...10000 W

PS 10360-80 3U   0...360 V   0...80 A  0...10000 W

PS 10500-60 3U   0...500 V   0...60 A  0...10000 W

PS 10750-40 3U   0...750 V   0...40 A  0...10000 W

PS 11000-30 3U   0...1000 V   0...30 A  0...10000 W

PS 11500-20 3U   0...1500 V   0...20 A  0...10000 W

PS 10060-510 3U   0...60 V   0...510 A  0...15000 W

PS 10080-510 3U   0...80 V   0...510 A  0...15000 W

PS 10200-210 3U   0...200 V   0...210 A  0...15000 W

PS 10360-120 3U   0...360 V   0...120 A  0...15000 W

PS 10500-90 3U   0...500 V   0...90 A  0...15000 W

PS 10750-60 3U   0...750 V   0...60 A  0...15000 W

PS 11000-40 3U   0...1000 V   0...40 A  0...15000 W

PS 11500-30 3U   0...1500 V   0...30 A  0...15000 W

PS 12000-20 3U   0...2000 V   0...20 A  0...15000 W


EA-PSI 10000 3U Series

PSI 10060-170 3U   0...60 V   0...170 A  0...5000 W

PSI 10080-170 3U   0...80 V   0...170 A  0...5000 W

PSI 10200-70 3U   0...200 V   0...70 A  0...5000 W

PSI 10360-40 3U   0...360 V   0...40 A  0...5000 W

PSI 10500-30 3U   0...500 V   0...30 A  0...5000 W

PSI 10750-20 3U   0...750 V   0...20 A  0...5000 W

PSI 10060-340 3U   0...60 V   0...340 A  0...10000 W

PSI 10080-340 3U   0...80 V   0...340 A  0...10000 W

PSI 10200-140 3U   0...200 V   0...140 A  0...10000 W

PSI 10360-80 3U   0...360 V   0...80 A  0...10000 W

PSI 10500-60 3U   0...500 V   0...60 A  0...10000 W

PSI 10750-40 3U   0...750 V   0...40 A  0...10000 W

PSI 11000-30 3U   0...1000 V   0...30 A  0...10000 W

PSI 11500-20 3U   0...1500 V   0...20 A  0...10000 W

PSI 10060-510 3U   0...60 V   0...510 A  0...15000 W

PSI 10080-510 3U   0...80 V   0...510 A  0...15000 W

PSI 10200-210 3U   0...200 V   0...210 A  0...15000 W

PSI 10360-120 3U   0...360 V   0...120 A  0...15000 W

PSI 10500-90 3U   0...500 V   0...90 A  0...15000 W

PSI 10750-60 3U   0...750 V   0...60 A  0...15000 W

PSI 11000-40 3U   0...1000 V   0...40 A  0...15000 W

PSI 11500-30 3U   0...1500 V   0...30 A  0...15000 W

PSI 12000-20 3U   0...2000 V   0...20 A  0...15000 W

EA-PS 10000 4U Series

PS 10060-1000 4U   0...60 V   0...1000 A  0...30000 W

PS 10080-1000 4U   0...80 V   0...1000 A  0...30000 W

PS 10200-420 4U   0...200 V   0...420 A  0...30000 W

PS 10360-240 4U   0...360 V   0...240 A  0...30000 W

PS 10500-180 4U   0...500 V   0...180 A  0...30000 W

PS 10750-120 4U   0...750 V   0...120 A  0...30000 W

PS 10920-125 4U   0...920 V   0...125 A  0...30000 W

PS 11000-80 4U    0...1000 V   0...80 A  0...30000 W

PS 11500-60 4U    0...1500 V   0...60 A  0...30000 W

PS 12000-40 4U    0...2000 V   0...40 A  0...30000 W

EA-PSI 10000 4U Series

PSI 10060-1000 4U   0...60 V   0...1000 A  0...30000 W

PSI 10080-1000 4U   0...80 V   0...1000 A  0...30000 W

PSI 10200-420 4U   0...200 V   0...420 A  0...30000 W

PSI 10360-240 4U   0...360 V   0...240 A  0...30000 W

PSI 10500-180 4U   0...500 V   0...180 A  0...30000 W

PSI 10750-120 4U   0...750 V   0...120 A  0...30000 W

PSI 10920-125 4U   0...920 V   0...125 A  0...30000 W

PSI 11000-80 4U    0...1000 V   0...80 A  0...30000 W

PSI 11500-60 4U    0...1500 V   0...60 A  0...30000 W

PSI 12000-40 4U    0...2000 V   0...40 A  0...30000 W

EA-PU 10000 4U Series

PU 10060-1000 4U   0...60 V   0...1000 A  0...30000 W

PU 10080-1000 4U   0...80 V   0...1000 A  0...30000 W

PU 10200-420 4U   0...200 V   0...420 A  0...30000 W

PU 10360-240 4U   0...360 V   0...240 A  0...30000 W

PU 10500-180 4U   0...500 V   0...180 A  0...30000 W

PU 10750-120 4U   0...750 V   0...120 A  0...30000 W

PU 10920-125 4U   0...920 V   0...125 A  0...30000 W

PU 11000-80 4U    0...1000 V   0...80 A  0...30000 W

PU 11500-60 4U    0...1500 V   0...60 A  0...30000 W

PU 12000-40 4U    0...2000 V   0...40 A  0...30000 W

EA-PU 10000 6U Series

PU 10360-480 6U   0...360 V   0...480 A  0...60000 W

PU 10500-360 6U   0...500 V   0...360 A  0...60000 W

PU 10750-240 6U   0...750 V   0...240 A  0...60000 W

PU 10920-250 6U   0...920 V   0...250 A  0...60000 W

PU 11000-160 6U   0...1000 V   0...160 A  0...60000 W

PU 11500-120 6U   0...1500 V   0...120 A  0...60000 W

PU 12000-80 6U   0...2000 V   0...80 A  0...60000 W
