TDK-Lambda DC power supply Genesys™ Series

Price：Negotiable

Product Detail

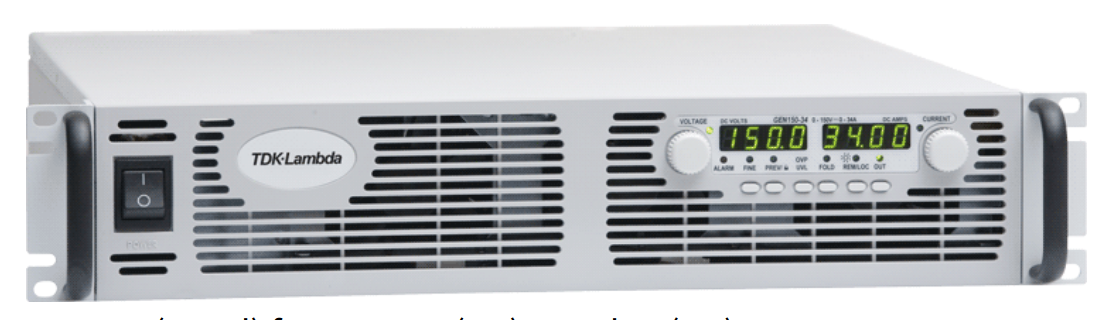

Genesys™ Series - 600W to 15,000W - Single Output

The Genesys™ Programmable DC Power Supply Series provides high power density (from 750W to 15kW) with a complete set of user-friendly interfaces in bench-top or rack-mount profiles and offers Output voltages from 6V to 1500V at Output currents up to 1000A using worldwide AC inputs (with built-in Power Factor Correction).

Multiple remote interfacing methods are available including the built-in Remote Analog Program/Monitor (5V/10V) and Remote Digital (RS-232/RS-485) Interfaces along with the optional LAN (LXI 1.5), USB (2.0), IEEE (488.2 compliant) and Isolated Analog (5V/10V and 4-20mA) Interfaces.

All models are CE and UKCA marked in accordance with the Low Voltage, EMC and RoHS Directives, have worldwide Safety Agency approvals (UL/cUL/IEC/EN 61010-1) and offer a five year warranty.

Pout(rated) from 750W (1U) to 15kW (3U)
VO(rated) up to 1.5kV; IO(rated) up to 1000A
Built-In Safety and Protection Features
Standard RS-232 / RS-485 / Remote Analog
Optional LAN (LXI 1.5), USB (2.0), IEEE (GPIB)
Optional Isolated 5/10V or 4-20mA Interfaces
Safety Agency Approvals / 5 Year Warranty

GenesysTM Family

GEN H 750W Half Rack
GEN 1U 750/1500W Full Rack
GEN 2U 3.3/5kW
GEN 3U 10/15kW

GEN H 750W Half Rack

GEN 1U 750/1500W Full Rack

GEN 2U 3.3/5kW

GEN 3U 10/15kW
