GENESYS+™ Rack DC Series - 30kW to 90kW - Single Output
The GENESYS+™ High Power Programmable Rack DC Power System platform provides advanced
features in a light-weight portable high power density profile with a comprehensive set of built-in
user-friendly interfaces that include a multi-functional front panel, LAN (LXI 1.5), USB (2.0),
RS-232/RS-485 and Isolated Analog (5V/10V), several optional digital communication interfaces
(IEEE, EtherCAT or Modbus-TCP) and an optional Isolated Analog 4-20mA (IS420) Interface.

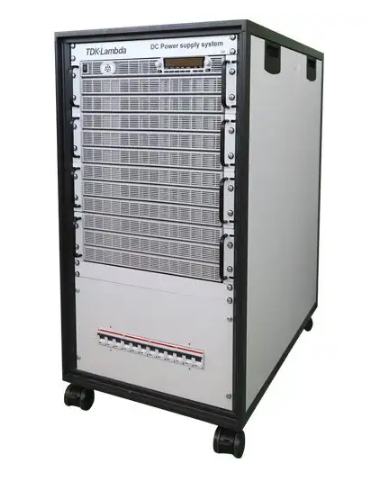

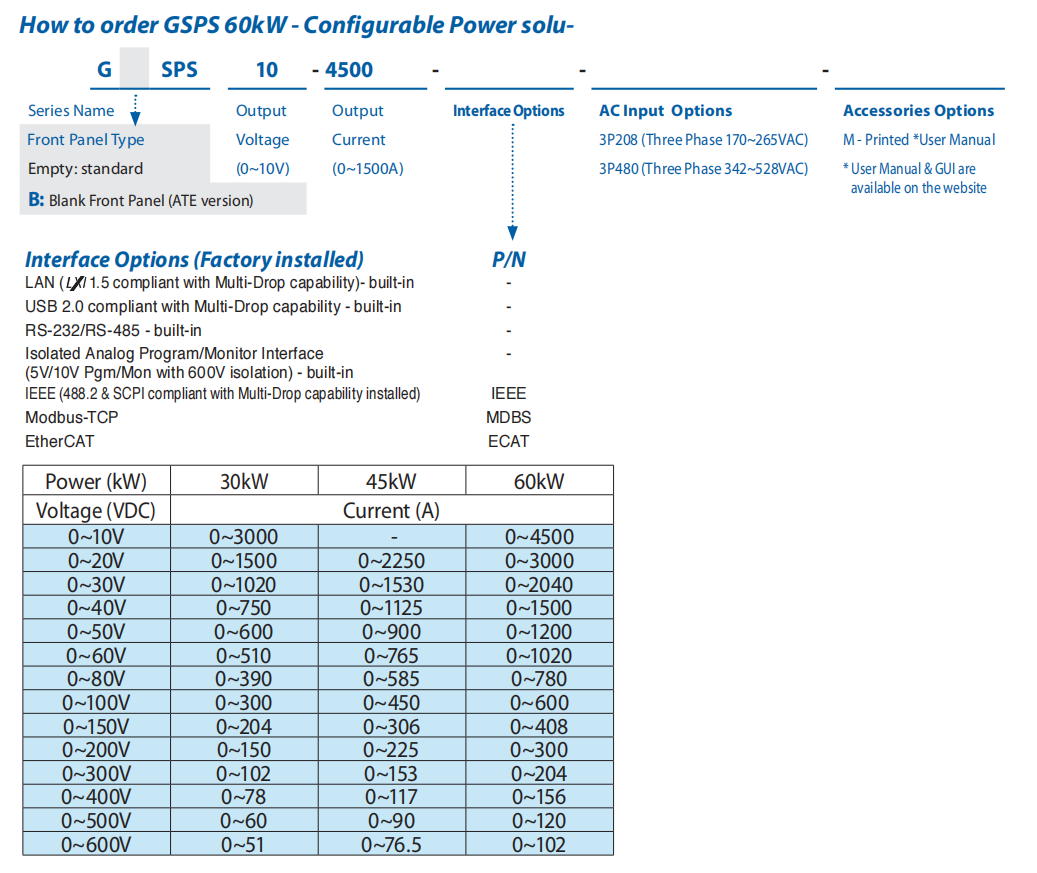

Output power levels cover 30kW, 45kW, 60kW and 90kW in a 23U Rack System profile, offer
low-noise performance and have Output voltage ratings from 10V to 1500V (and Output current
ratings up to 4500A).
AC Input options have built-in Active Power Factor Correction (0.94 typical @ rated load) and are
offered in a three-phase 208VAC Input (170-265VAC, 47-63Hz) or a wide-range three-phase
400VAC/480VAC Input (342-525VAC, 47-63Hz).
Advanced features include Programmable V/I Slew-Rate control, Constant-Power Limit control,
Arbitrary Waveform Generator w/ Auto-Trigger, Internal Resistance Programming, Pre-Load On/Off
control, Trigger In/Out control and Control Pins for Output Disconnect/Polarity Reversal.
All models are CE and UKCA marked in accordance with the Low Voltage, EMC and RoHS Directives,
have worldwide Safety Agency approvals (UL/cUL/IEC/EN 61010-1) and offer a five year warranty.
Features include:
• Wide Range of popular worldwide AC inputs:
3ø 208VAC (170VAC ~ 265VAC), Wide-range 3ø 480VAC (342VAC ~ 528VAC) • Active PFC (0.94 typical)
• Output Voltage up to 600V, Current up to 4500A
• Built-in LAN ( 1.5), USB, RS-232/RS-485 Interface
• Multi-Drop capability (RS-485)
• Multi-functional front panel display
• Last-Setting Memory
• Auto-Start / Safe-Start: user selectable
• High Resolution 16 bit ADCs & DACs
• Arbitrary Waveform Generator with Auto-Trigger Capability
• Store up to 100 steps into four internal memory cells
• High-speed Programming
• Constant Voltage/Constant Current operation modes
• Constant Power (CP) Limit
• Slew-Rate Control (V/I)
• Internal Resistance Programming Simulation
• Local / Remote Sensing - software controlled
• Built-In Remote Isolated Analog Program/Monitor and Control Interface
• Protection functions (OVP, UVP, UVL, FOLD (CV/CC), OCL, OTP, AC FAIL)
• Fan speed controlled by ambient temperature and load
• Certified LabWindows™/CVI, LabVIEW™, and IVI Drivers
• Optional EtherCAT, Modbus-TCP, IEEE (488.2) Interfaces
• 19" Rack Mount capability for ATE and OEM application
• Scalable Power Systems of 15kW
• Parallel Systems (up to 120kW) with Auto-Configure
• Worldwide Safety Agency approvals
• CE Mark for Low Voltage, EMC and RoHS3 Directives
• Five year warranty for the Power Supply
