TDK-Lambda DC power supply Z160-1.3

  • Price:Negotiable

Product Detail

    Products | Programmable Power Supplies

    Z+

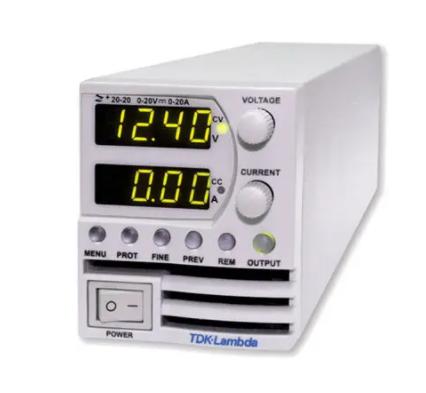

    Suitable for bench or 2U rack mounting, the Z+ is a very compact programmable power supply offering power levels from 200 to 800W, voltages of up to 650V and currents of up to 72A. Multiple remote programming methods are available including built-in USB and RS232/RS485, and optional LAN, GPIB and isolated analog interfaces. The units can operate in either constant current or constant voltage mode and accept a wide 85-265Vac input. The product is backed with a five year warranty.

    Features:

    • 2U High
    • Built-in USB, RS-232 & RS-485 Interface
    • Optional LAN, GPIB & Isolated Analog
    • Bench or Rack Mount
    • Constant Current or Voltage Modes
    • User programmable output signal pins
    • 5 year warranty

    Applications:

    • Industrial
    •
    • Test & Measurement
    Z+
    View pdf datasheet
    Model Number
    Rated Power (Watts)
    Output Voltage (V)
    Output Current (A)
    Construction
    PDFZ10-202000-100-202U
    PDFZ20-102000-200-102U
    PDFZ100-22000-1000-22U
    PDFZ160-1.32080-1600-1.32U
    PDFZ320-0.652080-3200-.652U
    PDFZ650-0.322080-6500-.322U
    PDFZ60-3.52100-600-3.52U
    PDFZ36-62160-360-62U
    PDFZ10-404000-100-402U
    PDFZ20-204000-200-202U
    PDFZ100-44000-1000-42U
    PDFZ160-2.64160-1600-2.62U
    PDFZ320-1.34160-3200-1.32U
    PDFZ650-0.644160-6500-.642U
    PDFZ60-74200-600-72U
    PDFZ36-124320-360-122U
    PDFZ10-606000-100-602U
    PDFZ20-306000-200-302U
    PDFZ60-106000-600-102U
    PDFZ100-66000-1000-62U
    PDFZ160-46400-1600-42U
    PDFZ320-26400-3200-22U
    PDFZ36-186480-360-182U
    PDFZ650-16500-6500-12U
    PDFZ10-727200-100-722U
    PDFZ20-408000-200-402U
    PDFZ100-88000-1000-82U
    PDFZ160-58000-1600-52U
    PDFZ320-2.58000-3200-2.52U
    PDFZ650-1.25812.50-6500-1.252U
    PDFZ375-2.28250-3750-2.22U
    PDFZ60-148400-600-142U
    PDFZ36-248640-360-242U
